07-01-2006 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 21
Post ID: 2620
Reply to: 2502
Building the Melquiades: #7, The End!!!

OK, I was looking today at the par of the new Melquiadeses posted above and realized they are too ugly to sit them in my room over the 4th July holydays. So, spending another fey hours I designed to end the project and put it behind me. I still do not have in my hand the final plate resistor for the driver stage but it would be no big deal to change later on.

So, I put the final bypasses in their places. The powers supplied were measured, bleeded where it was necessary, the final damping was eddied, the time delays were tuned, the main chasses was sealed, the top cover was inhaled (took 2 hours!) and the game officially was decaled over.

Actually the entire ceremony was much less annoying then I anticipated. It took approximately 40 hours, one working week, to make too monoblock, including testing and debugging the second unit (had some issues). Each monoblock end up to be 81 pounds but it is manageable as it is relatively small.

I look forward to get next week my new “fundamentals channel” 250Hz horn and to put the new Melq init the game.

Rgs,
Romy The Cat

PS: I juts conducted the most critical Koshkabilety test. It looks like my fussy pussy loves the new Milq...




"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
07-07-2006 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 22
Post ID: 2642
Reply to: 2620
Re: New Melquiades: I thought it was it!

A few days ago I decided to learn how the new Melq sound and made a quick speaker level crossover for one of my Macondo’s channels, putting the new built Melquiades to drive the acoustic systems that the SET meant to drive (Before it was 82dB and 88dB sensitive speakers). To my surprise it did not sound good. The sound was “large” but not delicate, detailed but not minute, colorful but not tonal. Even bass was lager and “puffier” but not as articulate as I would like to. Furthermore it little puzzled me the frequency sweeps that I have posted above was not as interesting as in the first Melquiades.

I was wondering what it might be. There are a number of minor differences between this new Melq and the original about none of them should crate problems, but in contrary be better. I really did not know….

I hypnotistsised that the only REAL difference between the old and new Melq was that the new one I decided to drive this new Melq fool force, burning the 6C33C at 60W. Since I am limited with the current on transformer I jack up voltage and run the output stage at 230V-240V. Theoretically the exercise power should truncate the frequency range but how could I confirms it and drop the voltage in output stage?

I was trying to put a larger R22 resistor, burring voltage but it increase the impedance of power supply and was not good. Then I trued to put another 40V transformer in out of phase with the B+ transformer. It dropped the voltage but did not sound well as well. Well, I took a rheostat and drove the B+ transformer with lover voltage then I have in mains. Actually the result was stunning. Ass soon I was entering domain of 105V I was getting sub 200V on plate and the sound completely changed. It was like coming back home: I lowered the voltage, wait for a few seconds until the tube cool down and then suddenly the sound begun opening up and blossom with the dazzling fertility and richness of the original Melquiades. Surprise, surprise… now the 6C33C was driven at 40W… exactly like the original Melq...

Now, I am in trouble as the B+ transformer is mounted and connected. I need now another transformer with 80V less voltage. I thought it was it but apparently it was not…

Rgs,
Romy the Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
07-08-2006 Post does not mapped to Knowledge Tree
AnonymousUser
Posts 19
Joined on 11-27-2004

Post #: 23
Post ID: 2644
Reply to: 2642
Compromise for new Melq overvoltage
Romy,
I hate it when I realise I need a different transformer...

The following is not an ideal solution because it breaks one of the Melquiades design features, but may be worth trying - cathode bias on the output stage? You could burn up some volts there... if not enough,
flip the bias R17 to the positive bias supply, and have a combination of, say +20V at the grid and 60V dropped in the cathode resistor.

Not sure if it would be an issue to fit the cathode resistor and bypass cap in the chassis - heat and size issues...

Given what the cathode biasing will do to the sound, you may just need a new transformer :-(

cv
07-08-2006 Post does not mapped to Knowledge Tree
hagtech


Hawaii
Posts 117
Joined on 02-13-2006

Post #: 24
Post ID: 2647
Reply to: 2642
Re: Lower voltage
Interesting results.  Funny thing about that sweet spot.

One thing you might try is to add the output from a 12.6V secondary to the primary side of the B+ tranny.  Out of phase.  This can be a resonably small transformer that could fit in that chassis.  This keeps the B+ impedances the same, puts 107V on the primary side.

I'm curious if the sweet spot is related to power.  Have you tried using a higher current at the lower B+?  Or does that overload the output tranny?  Wondering if 60W is too much for this tube.

jh
07-08-2006 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 25
Post ID: 2648
Reply to: 2647
I thought to drive the 6C33C harder. What a Moron I was!

Jim, I did try the anti-phase transformer in the secondary but I felt that it did something to sound. I can not do it on primary as I have the pate coil for the first stage sitting on the same transformer. Regarding the sweet spot of the 6C33C - I have a half of the site dedicated to this subject :-). The 6C33C is tricky little bastard and it’s best operation point vary form man y different thighs. In context of the given amps I have limited transformer of 200mA and I drive the second stage with 185mA. The first Melq was using 200V on plate and it sounded very good. The 200V was found after many-many days of experimenting and listening with all imaginable voltages, currants, dropping resistors, OPT sections configurations and so on… However, it was all I context 200mA gap in the transformer as Lindale has not enough core to hold masonry inductance if I go for higher current. Still, Dima and I were experimenting with the Melq sound truing the tube do not manifest sonic deficiently nether neither in current nor in voltage. It looks like at 200/200 it slicked very well… In the super Milq where I have no limits in the transformer core and what I have no demands for inductance the story was different…

Making this amp I foolishly went for 300V secondary coil instead of 240V as I did in the older Melq. I thought to drive the bitch harder and make it sort of universal amps that would be able to drive with 60W dissipation all those 95dB sensitive speakers. So, I did, but I screwed up the quality of sound. Perhaps if I have larger transformer it might be fun to try what it out of the 200mA but the result that I got out of Lindale was so acceptable that I had no motivations to search for other transformer.

BTW, Jim, did you view my question about the crazy swinging input shock that I've sent you another day?

Rgs,
Romy


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
07-28-2006 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 26
Post ID: 2700
Reply to: 2642
Re: New Melquiades: A new run...
Eventually I fed the new Melqs with another pair of power transformers for output stage. I ended to run the 6C33C very-very moderately at 180V and 200mA or at 36W. I think it is little bit low and I could add 3-6W but I prefer to keep it for a time being. My previous version with 250V on plate had strange bandwidth. This lower voltage version it looks like more interesting. I get from it a moderate power but I have enough for 100dB of sensitively. I feed it at 2.4V and at full power it gave up 28.5V at 1khz. Here are some pictures:

1000Hz

20.000Hz

40.000Hz

100Hz

20Hz

15Hz




"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
07-28-2006 Post does not mapped to Knowledge Tree
hagtech


Hawaii
Posts 117
Joined on 02-13-2006

Post #: 27
Post ID: 2701
Reply to: 2700
Re: Scoped out
What does the input waveform look like?  I see a lot of 2nd order distortion in the output.  Also, can you show at 1W output?  And when you say 28.5V, is that rms or peak?  The scale must be uncalibrated as I can't figure out the volts/div.  If this is 2V/div then you get 5W output?  I assume you are using 8 ohm resistive load.

jh
07-28-2006 Post does not mapped to Knowledge Tree
AnonymousUser
Posts 19
Joined on 11-27-2004

Post #: 28
Post ID: 2702
Reply to: 2701
Re: Square Wave
Hi Romy,

For my benefit can you show the trace when it amplifies a 10K square wave?

rgs

Guy
07-28-2006 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 29
Post ID: 2703
Reply to: 2701
Re: Scoped in, scoped out

OK, the first think first. The second and the their images from the tope that were marked 2000Hz and 40000Hz are in fact 20.000Hz and 40.000Hz. I just lost a zero when I typed it. I have corrected the labels

Jim, it is a good question about the input waveform? I have no idea now and I will post it later on tonight. I have quite rudimentary and not very well performing generator and perhaps it does not have a proper output (thought I doubt). From a different perspective, why should we not see a lot of 2nd order distortions in output? It is SET, it should be this way. Perhaps later on I will run my distortion analyzer against the Melq …

Regarding the power. 28.5V RMS is was into 12R, as I usually do. I measured it precisely at calibrated scale just once to have an idea about the power. When I was looking at the frequency response I uncalibrated the scare juts to starch the wave exactly across the 10 dividers on the screen and then, running the frequencies up and down, I used only time/div to view the valve. I know, that you might consider this way of viewing is quite barbaric and I might agree with you but I did not care when it hit 3dB and I was not concern about the absolute numbers of the response. To me it is more important to get a FEELING of dynamic of this process. I usually set the max outs voltage on generator before the wave get clipped at 1000Hz and then moving up I observe how dynamic  with whish amplitude goes down after 20Khz; and moving down, I observe HOW the wave get distorted under 30Hz. I had THAT feeling from my first excremental Melq and I was a little disappointed that this new Melq with 60W plate dissipation measure and sound so different and so poor. This current version with the lower plate dissipation (similar to the original Melq was) behaves and sounds and very similarly to the original Melq, although the original had very slightly more, 42W on plate.

Guy, yes, I post the 10K square wave tonight,,,

Rgs,
Romy the Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
07-28-2006 Post does not mapped to Knowledge Tree
hagtech


Hawaii
Posts 117
Joined on 02-13-2006

Post #: 30
Post ID: 2704
Reply to: 2703
Re: Sined or sinned
 romy wrote:
I have quite rudimentary and not very well performing generator


That's what I thought.  I see a point at the tips of the sinewave, a dead giveaway to a ICL8038 style waveform generator.  I wanted to see the input because much of the distortion could be caused by it.

There is nothing wrong with seeing the 2nd order distortion - in fact it appears to be quite small for such a high power level.  It's just nice to be able to see it.  I understand how you like to FEEL the amplifier as you sweep the frequency.  I do the same thing.  You watch the distortions and glitches and look for patterns and trends.  It is easy to spot irregularities that cannot be seen in a static snapshot.  Try also to do the same thing with a triangle or sawtooth input.

Guy suggests the square wave.  I'm absolutely anal about transient response.  I spend more time on step response and nice looking square waves than anything.  It gives you a very good understanding of phase and temporal relationship with the amplitude.  Now if we can only get more loudspeaker designers to do this.

Oh, I just thought of something.  The phase (polarity) switch needs to be ahead of the Melq.  And here's my theory:  The 2nd order distortion is polarity sensitive.  It must match the input polarity so that it adds properly.  Otherwise it subtracts.  Vocals are nonlinear and mimic a heavy 2nd order distortion.  If you amplify it with a nonlinearity of the wrong polarity then you partially cancel, or worse, turn it into 3rd order.  Think of it this way.  The transfer function of a PP amplifier is an "S".  For an SE amp it is a "J".  If you add two SE amps in series you either get a stronger "J" or it turns into an "S", depending on polarity.  I think it is important to match absolute polarity in this fashion.  Sound in a gas is similar to SE (1/P function).  A kick drum transient that pushes air (compress) before it pulls (rarefaction) will sound wrong if played backwards.  I think it also makes a difference if you add 2nd order distortion in the wrong way.  Sound in a gas has a curved function, so does your SE amp.  My theory is that it is better to have them sum rather than cancel.

jh
07-28-2006 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 31
Post ID: 2705
Reply to: 2704
More data about the new Melq and some about the Super Melq

Well, Jim, it is time to say “Oops!” I told to myself do not make any posts early morning unit I eat a bagel but this mooring I disobeyed the rule. Anyhow, I do not know how I come up with 28.5V RMS. Defiantly it was peak-to-peak on the scope and I remember that I intended to get a correct calibrated number, so I did but, or I think I did…. but it hardly looks like anything mindful. The amp should be in 12W region, slight less then the original was. I juts feed it with 2.4V into 12R and my “true RMS meter” Fluke 87 said that it is 9.22V. Also, here is the feed directly from my generator that you asked.

Below are the square waves:

1000Hz

20.000Hz

100Hz

Here is I fed one channel from scope directly and another from amplifier. The wave that came form amplifier is located higher in all 3 pictures.

1000Hz

20.000Hz

BTW, boys, juts for fun… The Super Melquiades LF channels were made more powerful and it runs 6C33C at higher plate dissipation with a transformer with a single secondary, gaped for a double operating current with much more inductance and core mass.  The LF channels was tested and “tuned” (enough current + enough voltage”) as 4.2V at input, which is quite a difference with 2.4V of the current fill-range Melq. Still, I was trying to run it at 4,8V that makes it far beyond 20W. Well, take a look what it does… , if you feel that the Super Milq LF does not mesure insulting then I would assure you that it sound much more interesting then it measures….  I believe those who heard it would not disagree…

The Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
07-30-2006 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 32
Post ID: 2706
Reply to: 2502
Building Melquiades Ending...

Best amplifier is the one that you just built…

Yes, it is a common unfortunate law of Audio but the people who know me personally know that try do not behave according to this behavioral pattern. So, this weekend I decided to do try the new Melquiades on the crap that I have been using for a few weeks but quick-make form Macondo a suitable mono speaker suitable for this SET. It took literally 1/4 hour to make the speaker. A pair of 5.5R woofer towers connected in series with 65Hz low pass first order driven from one of the new Melquiades monoblocks.   The Macondo upper bass horn driven full-range juts for sake simplicity. The S3 channel from Macondo with unavoidable 3UuF and the Macondo’s tweeter atop. The horns are driven by the second Melquiades monoblock, full range with EVS attenuator in front to EQ the sensitively gap with the LF chants. The both Melqs eventually fed with new tubes and driven the 180V, 200mA.

What is that marvelous sound; it was exactly the Melq that I remember. It is not exactly even because the speaker is simplified but it is the very-very the same sound as Melq is need to do. It has stunning resolution and transparency but it never go further into hyper-resolution and artificial effects. It has fantastic speed and transient characteristic but at the same time it perfectly maintains something that I call “acoustic-like harmonic structure” and capable to produce very fluent and soft sound. I have written about it  and many other things during my “Melquiades discovery phase”….

Anyhow, I juts listened on this my temporary playback a very complicated peace and mine the very favorite performance of Rafael Kubelik leading Berlin with Dvorak's Ninth Symphony. It is scare how good it is and how good the new Melqs handled it with … almost smile.

Good! I am very glad now with the result.


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-11-2007 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 33
Post ID: 3477
Reply to: 2706
The Super Melquiades' “New” cooling fan.

I was replacing transformers in the Super Milq HF channels and while I was doing it I decided to perform a minor maintenance on the amp.  One of the amp’s fans developed a “flat” in it bearing and created a very minor “step”. I order a replacement fan, also this time I decided to mount it differently. I ordered the very same fan that I used before, the most silent that I was able to fine 2 years ago.

To my surprise the very same fan tuned out to look very different: the same price, the same box packaging, the same model of course only slightly differently looking blades. It was SilenX 120x120x25 12V fan with 1100RPM at 11dBA. So, I put the new fan next to the old fan on my table and tune them on. The new one is twice more silent! Hm… how little I need to be happy!

Also I abandoned to mount the fan with screws and fan rubber gaskets. This time I just dumped on the amp’s wall the black silicon that I used everywhere (mentioned above) and glued the fan to the amp via 3/8” of the silicon. The result of the new fan and new mounting is fantastic. When the fan is on, at full 12V (never happen) then my stethoscope pick absolutely no events on the Milq’s chassis. Very-very cool!

The caT


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
02-08-2007 Post does not mapped to Knowledge Tree
loudcloud
Posts 1
Joined on 02-08-2007

Post #: 34
Post ID: 3693
Reply to: 2648
Voltage Meters
Hello,  where did you source the voltage meter?
02-08-2007 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 35
Post ID: 3694
Reply to: 3693
Melquiades' Meters...

Hello, loudcloud,

The Milq’s meters are by Hoyt (link). You might look at

http://www.hoytmeter.com

and from theer your might customize it in any direction wish. They are not dirt-cheap but I fine them reasonable for what they do. Here is the picture of the same meters in the Super Melquiades.

The Hoyt folks kind of screwed me up initially but eventually it turned out to be OK and I generally happy with them.

Rgs,
The Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
07-11-2007 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 36
Post ID: 4731
Reply to: 2514
The new transformers for Super Melquiades.

It, looks like the problem with the steel chassis picking up stay magnetic fields from my Super Milq’s power supply is about to be gone. With the introduction of the 3 extra single-stage channels I needed more current for 6.3V filaments and slightly other voltages for B+…. I was thinking to make it in half-ass, using my current magnetic, but then, since it will me my last amp, I decided to go for the set of the new transformers. Sure, opening the Pandora Box I opened it wide open and eventually I went for a new set of custom toroids for everything, including the potted chokes and so on… Since they will be hanging outside of the chassis in L-brackets (like the bunny ears) it will be no more with-chassis talking….

Two: 12,6V – 10A, center tap, 6.3V – 10A center tap

Two: 440V – 350mA, no center tap, 440V – 150mA, center tap

Two: 220V – 3A, no center tap, taped primary with 240V out

Six: 10H 400mA

The Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
09-22-2007 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 37
Post ID: 5354
Reply to: 2706
Well, the Melquiades going to graveyard...

 Romy the Cat wrote:
.....it is scare how good it is and how good the new Melqs handled it with … almost smile.
Since almost 3 years ago I was introduced to Milq it went a long way. There was two full-rage Milq ever built by me – one was the initial - I do not have it anymore and the one that I made for myself last year. That last one was very tough staffed, fully choke-regulated amp with somehow limited 200mA OPT’s gap. The presses of building that amp is well illustrated within this thread.

Over the last 2-3 years the full-range Milq begin to loose it’s importance as it paved the way for a Super Milq DSET. The full-rage Milq was sitting in my room, sitting, sitting and sitting, driving the Injection Channels, driving some other thing and eventually, since the new 6-chennal Super Milq has a built-in full-range channel I decided to decommission the pair of my full-range Milq monoblocks. I dumped the Milqs to my car and drove it to my storage… So long, the Melquiades.

It was certainly not an “emotional” moments but I had “special feeling” as the Melquiades had became my past. I still feel that I was not completely “done” with it as I would like to hear the full-range Milq with 350mA transformer, driving the 6C33C at 55W. I’m not willing to do it myself, partially because I do not have good speakers with which I would be able to listen such a full-range amp and partially becose I have no need in that.

The last question that was cursing in my mind when I was driving the Milq to the graveyard was how much in the sound of my today 6-chennal Super Milq I recognize the sound of the original Melquiades. I would like to be able to tell you/myself that very well researched and investigated sound of the original Milq is essentially the same as the sound of the new Super Milq. However, it would not be a right observation. The 6-chennal Super Milq has different sound. The 3-chennal Super Milq has slightly different sound and the 6-chennal Super Milq has even more differences. The character of the sound is similar in a way but there are many other things that make both sounds not exactly comparable.

So, the Milq went to sleep with fishes. It is kind of sad and happy event… One door open another door close…The life is going on. Bye-bye the Melquiades. You were a good ride…

Rgs, The Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
08-29-2009 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,495
Joined on 05-28-2004

Post #: 38
Post ID: 11584
Reply to: 5354

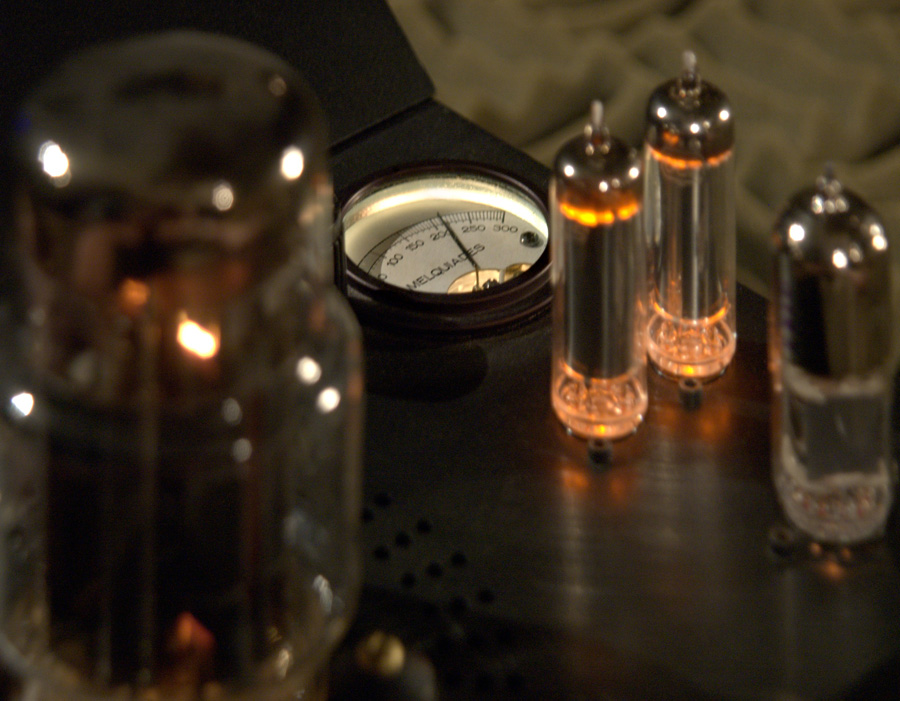

Touching the full-range Melquiades
fiogf49gjkf0d
A local guy asked me that since my low-powe,  full-range Milq is sitting in my storage and I do not use it then he would like to try it: he has 1110dB sensitive speakers and SET and PP amps. I figure out that if I give the Milqs to him now then I will be moving less crap from my storage in my new place as he will return Milqs back to new place.  Anyhow, I brought the Milq back home to inspect how much rats in my storage eat them. I kind of forgot how my full-range Milq looks like during the time passed and I tell you I have a renew love to those amps. I do not take about sound – it is not the subject for me anymore – I have discovered all about the Sound years back. In addition I have a full-range Milq built in my current 6-ch Milq configuration. What I meant that caring the full-range Melquiades last week I was stricken how pleasant the amp in its physical materialization.

The proportion of size, weigh, the distribution of weigh, my knowledge how much was stiffed into this amp and how rationally internally everything is located, grounded and wired made me very happy that this amp was made by basically such a deranged “designer” and “builder” as I am. Particularly the idea to have an empty steal shell that has no mounting holes for internal hardware was very-very cool idea. The large parts of the amp are not bolted to the chassis but glued with heavy-duty silicon and it gives to the amps a VERY special feeling. It is very interesting to tap the amp chassis or to drop it to floor from a few fee millimeters of heights – Milq responds with very interesting physical sound – it is like a sound of not completely cooked egg, has sort of own inertia in there – very cool feeling.
Anyhow, I had so much pleasure to touch the amp that I decided to celebrate the delight with a picture: here is goes…



The Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
08-29-2009 Post does not mapped to Knowledge Tree
hagtech


Hawaii
Posts 117
Joined on 02-13-2006

Post #: 39
Post ID: 11585
Reply to: 11584
Beautiful Amp
fiogf49gjkf0d
I agree, I like the idea of glue or resin to attach components to a chassis.  It adds a nice layer of damping material.  I used to to this with step-up trannys for mounting in a box.  Works great with the Cinemag or similar style cans.

jh
11-19-2017 Post does not mapped to Knowledge Tree
S.yorke
Posts 2
Joined on 11-15-2017

Post #: 40
Post ID: 24567
Reply to: 2618
Operating point of Melq SET for Single full range speaker
Dear Romy,What would be your suggestion on the operating point and OPT impendance if I were to drive a single driver Back loaded horn speaker with over 102db/W? Knowing that you have mentioned a range of operating points in the forum, I still not too sure what would best for my setup. Thanks in advanced.
BR
